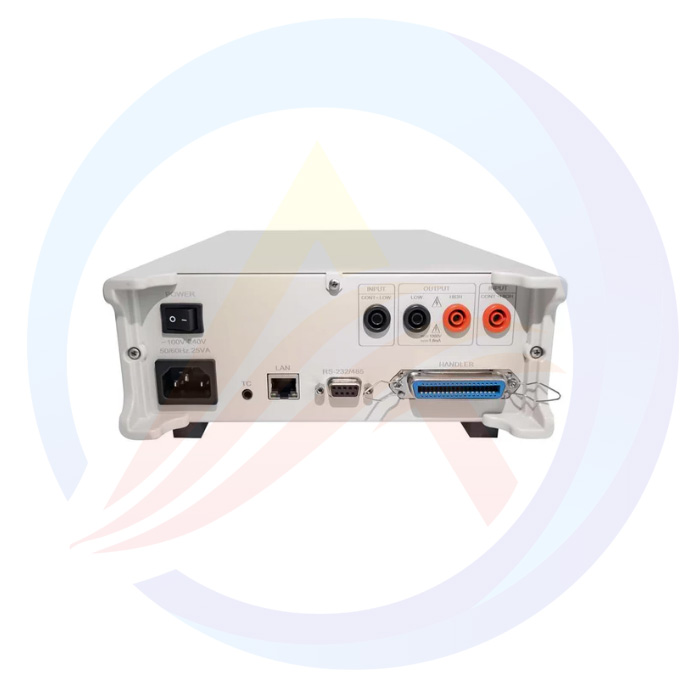

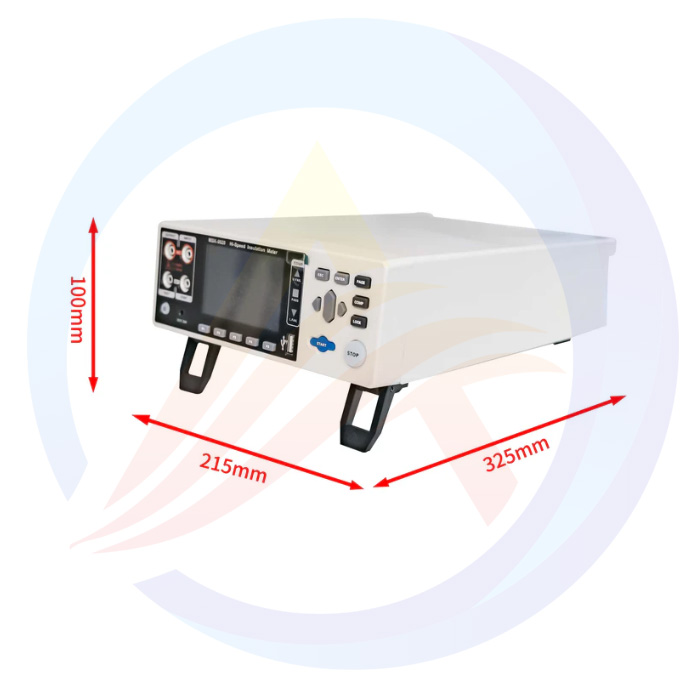

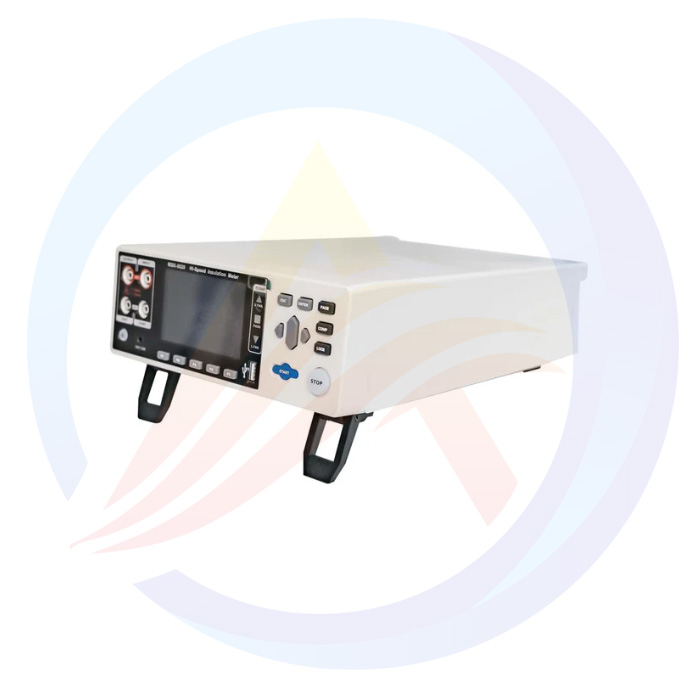

AOT-MSK-9920 is a high-performance insulation resistance tester used to test the insulation resistance of components and devices. It has contact fault detection and short circuit fault test functions. The fastest test time is up to 50 milliseconds.
Features | ·3.5-inch high-resolution TFT screen for simple operation · Maximum constant current output: 1.8mA · Minimum test cycle: 50 milliseconds · Able to detect test line or contact abnormalities · Effectively detect short circuit conditions · Automatically discharge after the test · NPN or PNP interface can be configured |
Voltage | · AC 110-230V, 50/60Hz |
Power | · 15W |
Testing Voltage | · DC 10 ~ 1000 V |
Testing Range | · 0 ~ 4000 MΩ (Total 5 scales) |
Maximum Output Current | · 1.8 mA |
QMaximum Discharge Current | · 1.2 mA (Constant current discharge) |
Trigger | · IO trigger, manual trigger, bus trigger |
Testing Speed | · High Speed: 50 ms · Low Speed: 500 ms |
Data Saving | · 10 sets of data can be recorded |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q.What is insulation resistance tester
Insulation Resistance Tester (Insulation Resistance Tester) is an instrument used to measure the insulation performance of electrical equipment, circuits or insulating materials. By applying a direct current high voltage, measuring the leakage current and calculating the insulation resistance, the higher the resistance, the better the insulation performance. It is used to assess the insulation condition of equipment such as motors and cables.
Q.The function of insulation resistance tester
Insulation Resistance Tester (Insulation resistance Tester) is used to evaluate the insulation performance of electrical equipment (such as motors and cables) and insulating materials, detect defects such as aging and moisture, prevent leakage, short circuit or electric shock accidents, ensure system safety, and is also used for equipment installation, maintenance and factory verification.
