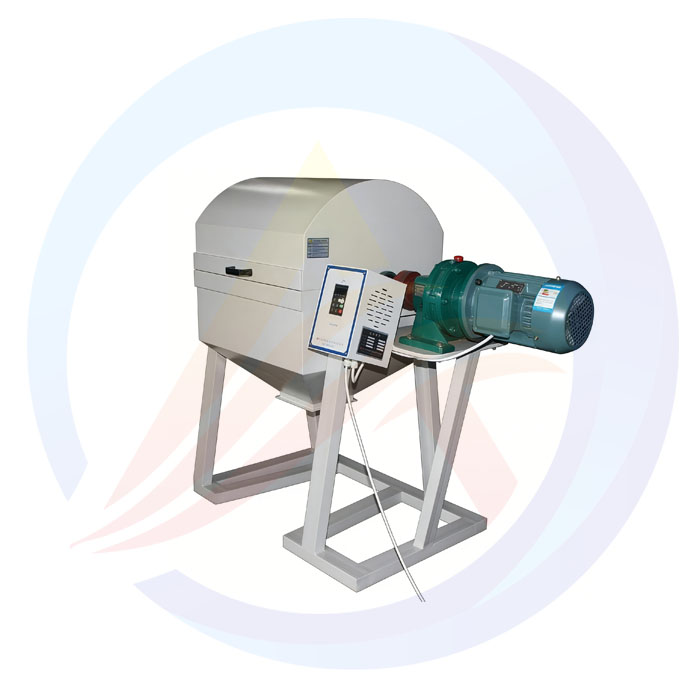

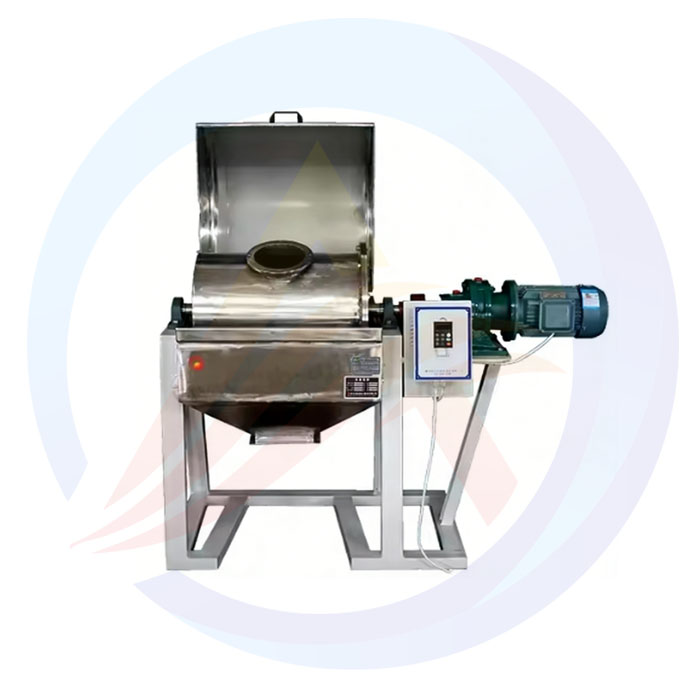

Product Introduction and Principle:
Optional lining options include nylon, stainless steel, polyurethane, alumina ceramic, zirconia ceramic, etc. And it can be equipped with a variable frequency speed regulation mechanism, which can be equipped with automatic unloading and protective cover. It is easy to operate, the discharge is clean, and there is no dust pollution. Widely used in industries such as ceramic powder, ferrite, glass raw materials, metal powder, ore machinery, alloys, coal, coke, etc.
1.Product features:
1.11. The machine runs smoothly, efficiently and energy-saving, with low noise and no pollution;
1.2. It can be used for dry and wet grinding, and can handle materials of various hardness. It can be used for coarse and fine grinding or for mixing materials;
1.3. Equipped with an automatic unloading machine, the material and ball can be automatically separated, making discharge extremely convenient;
1.4. Use protective jackets with high material purity and low pollution;
1.5. Wear resistance and high grinding efficiency;
1.6. Alloy steel, stainless steel, high wear-resistant polyurethane, corundum ceramics, zirconia and other lining materials can be selected, and the model can be selected from 20-2500L according to the user's production volume;
2. Selection assistance:
2.1. Model Description: QM - (Volume) - (Adjustable Speed Type)
For example, QM-50-A is a 50L variable speed roller ball mill;
2.2. Determine the machine model based on the grinding amount;
2.3. Select ball milling jars (or liners) and grinding balls of different materials based on their properties;
2.4. Equipment with automatic feeding device and dust cover can be selected;
3. Precautions for use:
3.1. The equipment must be placed on a flat and sturdy ground;
3.2. Keep the electrical parts dry to prevent safety accidents and equipment damage;
3.3. The equipment must not operate with defects, and any abnormalities must be stopped for inspection;
3.4. Pay attention to equipment maintenance, regularly check the oil condition inside the equipment transmission, and keep the equipment clean;
Model | AOT-QM-30L | Jar capacity/ loading capacity | 30L/10L |
Jar | 325mm Dia. x 400mm(5mmT) | Weight | 110Kg |
Drum speed(±2) | 10`60r/min | Motor power | 0.75KW |
Input particle size | Less than 10mm | Output particle size | 50-1000 Mesh |
